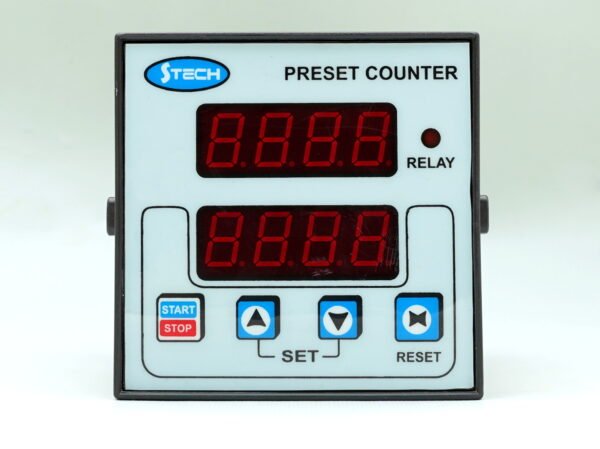

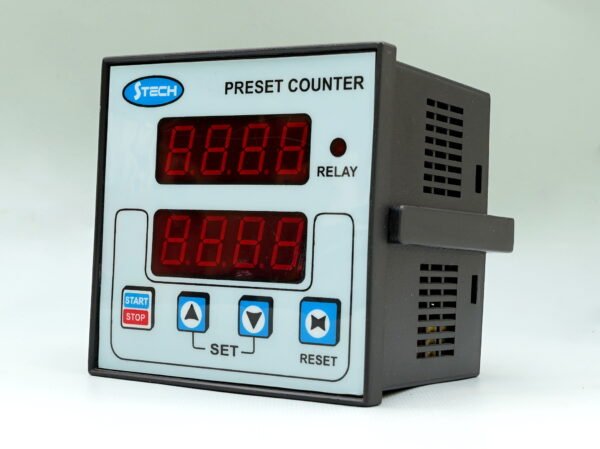

PC-172 Preset Counter is designed for motor coil winding applications with accurate up/down counting functionality. It supports 4-digit setting and counting up to 9999. The unit allows both up and down counting, making it useful for rewind and correction operations. It uses soft-touch switches for easy setting and includes opto-coupler dual sensors for reliable up/down counting. It operates on 220V AC and provides motor output along with 180V DC brake output for better control.
Key Features:
4-digit setting and counting (up to 9999)
Up/Down counting for rewind operations
Soft-touch setting switches
Dual sensor input (opto-coupler)
220V AC operation
180V DC brake output
How it Works:
The user sets a target count. The counter increases or decreases based on machine rotation. In case of rewind or correction, down counting adjusts the total automatically. The system stops the machine when the final count is reached.
